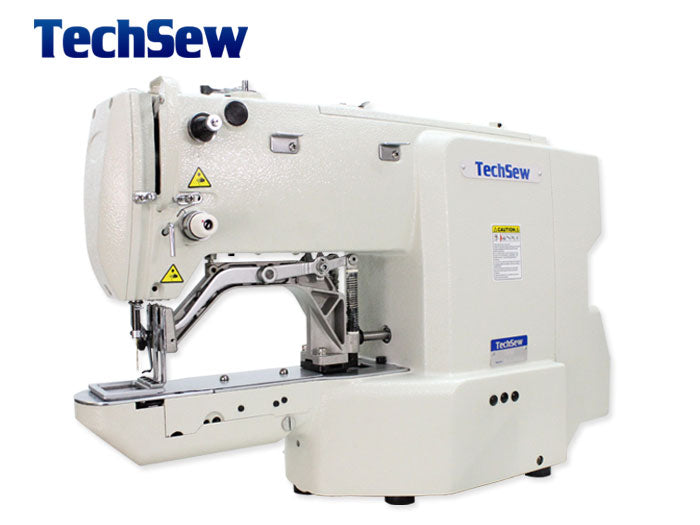

The Techsew 435 is a heavy duty tacker for thick materials such as webbing, denim, felt, light leather. It is programmed with over 50 fully adjustable stitch patterns and automated operations including automatic foot lift, thread wiper, thread cutter and digital tension device.

Features:

  • Fully automatic foot lift, thread wiper, thread cutter and digital tension device
  • Energy efficient direct drive motor
  • Over 50 adjustable stitch patterns

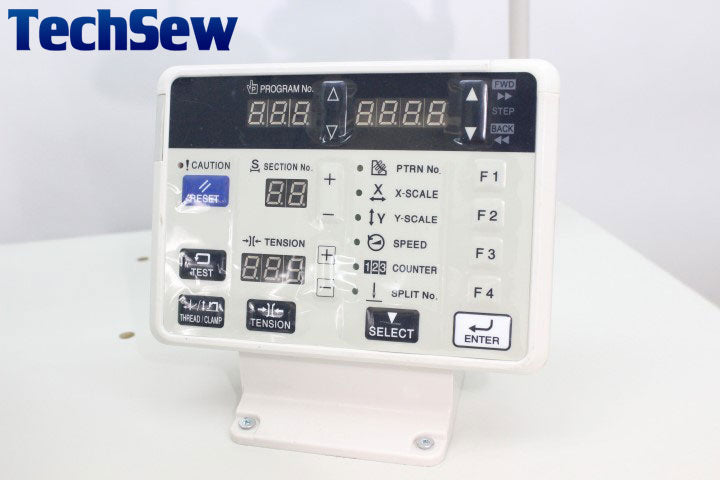

  • Easy stitch pattern change with digital control panel
  • Low noise and low vibration
  • Fast cycle time

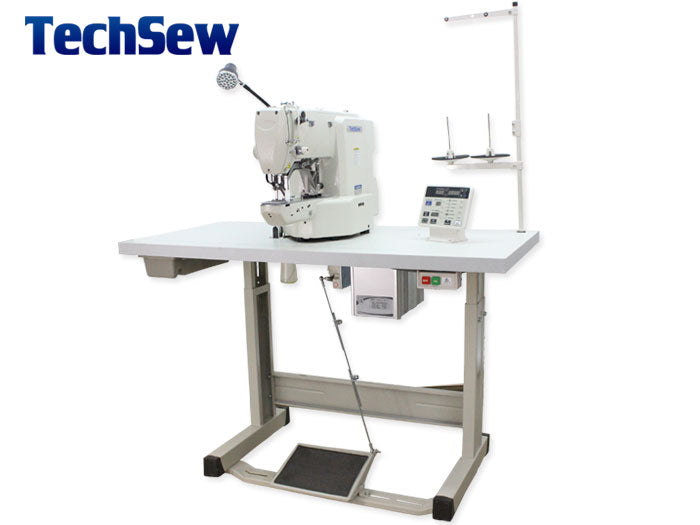

  • Complete with table and motor

Specifications:

  • Sttich form: Single stitch flat sewing
  • Max speed: 3200 SPM
  • Size: Max 40x30mm
  • Feeding drive method: Intermittent feeding
  • Stitch interval: 0.05-12.7mm
  • Automatic presser foot lift
  • Presser heigh button clamp height: Max 17mm
  • Shuttle: standard semi-rotary hook
  • Digital tension device
  • Automatic thread sweeper
  • Automatic thread cutter
  • Data storage method: flash memory with U disk
  • Memory capacity: 89 sewing patterns
  • Motor: AC servo 550W
  • Weight: Head 57kg
  • Power supply: Single phase AC 220V, 50-60hz
